DBX-07 1/7 RC Desert Off-Road Truck – 80km/h, 4WD, RTR or Kit

Quick Specs

• Brand: EZD Racing
• Scale: 1/7
• Color: Blue & Grey
• Top Speed: 80 km/h
• Drive: 4WD
• Versions: RTR or Kit
• RTR ESC: 150A brushless (supports up to 6S LiPo)
• RTR Motor: Surpass 4282 Brushless 2000KV
• RTR Servo: 25 kg torque
• RTR Battery: 2 × 11.1V 5000 mAh LiPo (included)
• Charging Time: ~2 hours
• Run Time: ~20 minutes
• Transmitter (RTR): 2.4 GHz, 4CH, >100 m range; requires 4 × AA (not included)
• Shock Absorbers: Ø165 × 63 mm, large-capacity adjustable oil shocks
• Reduction Gear Ratio: 15:1
• Chassis: CNC T6061 aluminum alloy
• Car Size: 680 × 380 × 225 mm
• Wheelbase: 419 mm
• Chassis Height: 52 mm
• Wheels/Tires: Ø165 × 63 mm
• Box Size: 630 × 375 × 190 mm

Driving Profile

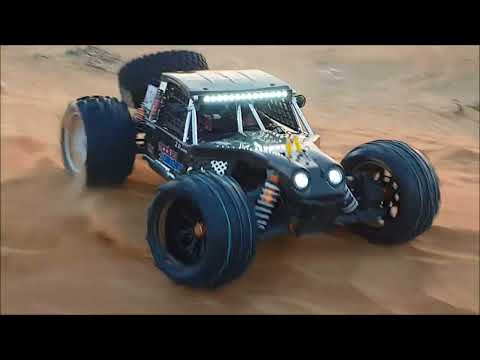

Built by the ZDracing professional team, the DBX-07 is a 1/7-scale desert off-road truck designed for extreme 4WD performance and scale realism. Lightweight structure, competition-grade materials, and a powerful brushless system deliver aggressive handling across dirt, gravel, and open trails.

Control & Features

• Integrated LED system: simulated headlights, roof spotlights, and taillights (15 headlight modes)
• Full cage-type super-tough roll cage with detailed cockpit and scale accents
• Very aggressive all-terrain tires with new high-grip tread; wheels in titanium gray or blue/black
• Factory head-up (wheelie) kit with adjustable angle
• Super power transmission: larger-modulus differential gear, all-metal center diff
• CNC chromium-molybdenum steel transmission gears; hardened alloy steel dogbones/connectors
• Thickened driveshafts throughout the vehicle
• Reinforced gearbox with pre-embedded metal bearing seats to prevent gear misalignment and wear
• All-metal, large-capacity, adjustable oil shocks
• PVC body panels with fully electroplated cage-type protection

What’s Included

RTR Version

• 1 × DBX-07 RC Truck
• 1 × 2.4 GHz 4CH Transmitter (>100 m range)
• 2 × 11.1V 5000 mAh LiPo Batteries (installed)
• 1 × B3 Balance Charger Adapter (EU/US)
• 1 × Wheelie Bar
• 1 × Tire Wrench
• 1 × Manual

Kit Version

• 1 × DBX-07 Car Frame (motor, ESC, servo, transmitter, battery, and charger not included)
• 1 × Accessories Bag
• 1 × Tire Wrench
• 1 × Manual

Vanguard’s Take™

The DBX-07 blends authentic desert-truck aesthetics with brutal 4WD performance. From its electroplated cage and 15-mode lighting to a CNC-machined T6061 chassis and heavy-duty drivetrain, it’s built to take hits and keep charging. Choose RTR for instant action or Kit to craft your own powerhouse.
